Acorn Wide Angle 5310WMG Trail Camera with Antenna Modem. Invisible Black LED illumination.


Acorn Wide  Angle  5310WMG  Trail  Camera with Antenna Modem

1 in stock

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
  • Visa Card
  • MasterCard


Acorn Wide  Angle  5310WMG  Trail  Camera with Antenna Modem

The Ltl Acorn 5310 Series (Model Ltl-5310A/MC and Ltl-5310MM) is the third generation of our Ltl acorn scouting camera. Bundled with the MMS-module(Multimedia Messaging Service) battery box (Part # LTL-MM1)standardscouting camera (Part Ltl-5310MC) can be upgraded to work as a remote cellular camera. With its highly sensitive Passive Infra-Red (PIR) sensor thecamera detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos,and sends the images via GSM network to the user cell phone or email account. With newly added SMS remote control feature you can change the related menu of the camera by sending SMS order to the camera in the specific form of the SMS content

How does it work?

The trail camera is a perfect camera to record all forms of wildlife whether in your garden or a remote piece of land. All you do is take it out of the box, turn it on and hang it point to an animal trail or feeding station. Leave the camera alone to record.

When an animal or bird passes the camera, the camera sensor will detect the movement and record a clip of video or stills for a period of time and write it to the video card. You then can return back to the camera to either retrieve the card or move the camera to another location. To view the footage, you can either plug the camera into your PC or remove the card and place it into a card reader.

Perfect gift for anyone….or yourself.

It is a perfect kit for any wildlife enthusiast. There is nothing better than setting up the camera and then reviewing footage later. Try placing it anywhere and seeing what results you can get. This is a perfect gift for young and old, grab one today.

Compact – 14 x 9 x 6.5 cm
Colour during day/black and white IR at night
Colour screen (2.36″) to see and review footage
5MP – 12MP resolution
Trigger speed 0.8 Secs
24 No glow LED’s – 40ft nightvision
Time lapse feature – Record same seen over time
Date, time, Temperature and moon phase indicator
Password protection
Takes 8 x AA batteries
Designed for outdoors – From -30c to +70c


Great battery life
Good video/picture quality
Excellent case design
Video trigger and recovery times are fast
With MMS/GPRS Models
Wide Angle Camera Lens

Llt Acorn Analysis

The Ltl acorn Ltl-5310WMG is currently one of the premier MMS/GPRS trail cameras on the market. Loaded with features and performance, but still light on price the Ltl-5310WMG was a favorite of many trail camera enthusiasts. Let’s take a look at the AcornCamera Ltl-5310WMG
review to see why it is so popular.

Quality of Design:

Programming is identical to any modern Ltl Acorn – pretty easy to navigate and intuitive. The Ltl-5310WMG has basically any programming feature you would want.

There is even an AM, PM or 24 hour run time setting just in case you only want the camera to run during certain times of the day. Here is a breakdown of some of the more popular settings:

With MMS/GPRS Models
Wide Angle:Provide more field of view.
1-3 multi-shot
Photo Stamp: Time, date, temperature, moon phase and camera name
Picture + Video Mode: Yes
Start/Stop Time: AM, PM, 24 Hr.
Password Protection: Yes
PIR Settings: Low, Normal, High
IF Flash: 65Feet/20Meters

Case design is excellent. The hinge design is big, strong and works well – even when it’s cold out. The materials used are strong and durable.
The battery compartment can holds the batteries well, and they are easy to remove.

Backpack System

The 5310WMG employs the same excellent ‘backpack system’ as the 5210A, meaning that the camera is actually in two parts.

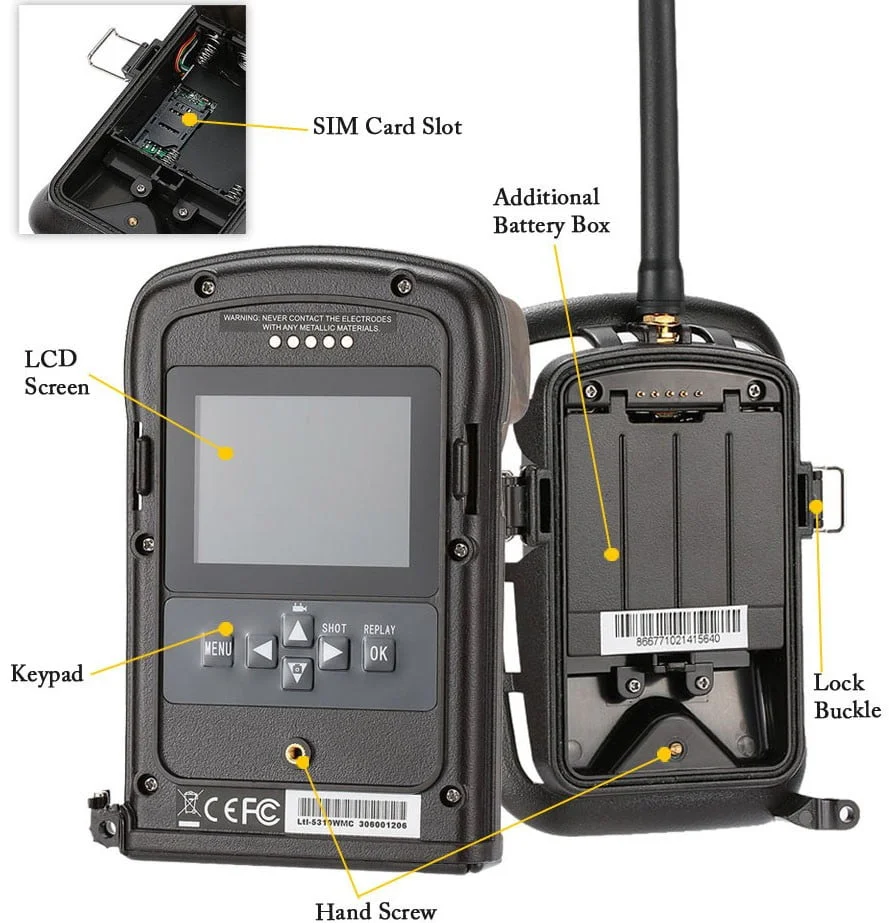

Ltl Acorn Ltl-5310WMG without its backpack – revealing the screen and controls

This makes it extremely easy to strap up and change the settings quickly.

Livestock love to rub up against camera traps, sniff them, chew the strapping etc and ultimately this can lead to damage. Our top tip is still to never place your camera trap where livestock could reach it.

5310MG.jpgHow Do The MMS/GPRS Function Work?

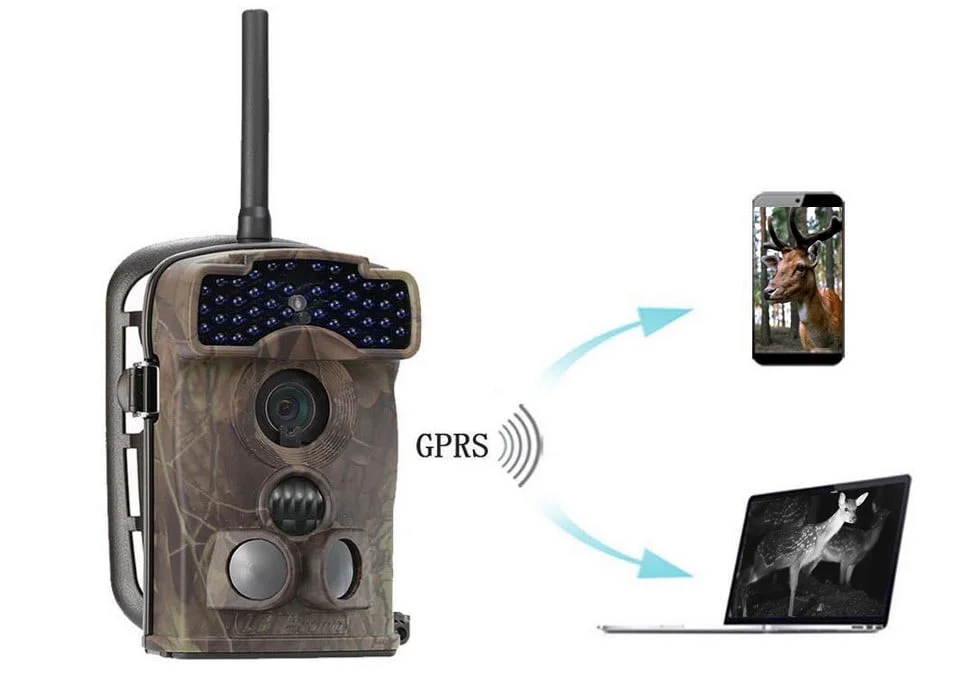

The trail cameras found here operate just as an ordinary motion activated camera, but with the additional function of being able to send images and/or alerts to your mobile phone or email over a mobile phone network.

For the MMS/GSM/GPRS operation they require either a prepaid / or contract SIM card. Alternatively they can be used as trail cameras with the standard features without the MMS option.

Multiple contact details can addressed for the camera to send notifications to.The setup is very simple to do and can be done within minutes.

These cameras are great for viewing remotely, whether you are a street or half way around the world away

The Difference Between Wide Angle Len Hunting Camera and Standard Angle Lens Camera:

The wide-angle lens gives a huge 100 degree field of view, almost double what the standard lens offer. This means that the animal will almost always be in shot when the camera triggers, and reduces ‘blank captures’; i.e. when the camera has triggered too late and the animal has moved out of the field of view.

Its also great if you want to monitor as large an area as possible, such as a large garden, and if you are monitoring for security purposes.

Picture & Video Quality:

Photo Resolution: 12, 5 or 1.3 MP | Video Resolution: 1280 x 960 | Flash Type: 940NM No Glow Infrared

Day pictures have clarity, excellent color and good depth. Day pictures are outstanding and we got a lot of positive feedback.


Megapixel Ratings:
If you want to maximize your night pictures, have the horizon about midway up the picture. Don’t point the camera into the ground or an area when objects are close to the camera and bounce light back (creating the overexposure).

When this camera takes a picture or video at night, the infrared LEDs will glow red. For pictures, this will be over in less than a second, for videos the glow will stay on while the videos are recording.

Video Quality

The video quality is a step up with 1280 x 1080Pvideo resolution available at 20fps.

Take a look below; both daytime and nighttime footage (be sure to turn the quality to 720p).

Battery Life:

The resting power is exceptional and the day/night consumption is very good. This camera is very efficient and capable of long battery life.
This camera operates on 4~8 AA batteries. It is capable of using alkaline, nimh and lithium batteries. Our preference is lithium batteries, they will last the longest and be the most reliable. Alkaline are by far the most unreliable battery.

How to active the camera is and whether you’re capturing video or picture. Set to picture mode, the camera will run for about 4-6 months, depending on how many pictures its taking a day.

If its taking about 10-20 days then it should be fine, but if its taking 50+ a day then the batteries will drain much faster.

Overall, the Ltl Acorn is currently the fastest picture taking machine on the market, has great battery life, takes strong day/night pictures and is easy to use.

The Ltl Acorn Ltl-5310WMG basically gives you top of the line speed and performance, for a tiny fraction of the price. If you are in search of a 940NM no glow infrared trail camera, the Ltl acorn Ltl-5310WMG is a tough camera to turn down.

Enjoy our AcornCamera reviews? Please consider purchasing your next trail camera from us.


Batteries8xAA batteries
CommicationSMS Remote Control
Detection Distance
Detection Distance20M Distance
Flash Type
Flash TypeNo Glow Invisible
Shop By Categories
Shop By CategoriesLtl Acorn
Support Network
Support NetworkMMS/GPRS Network
Trigged Speed
Trigged Speed0.8 Second
Video Resolution
Video ResolutionHD 1080P
Wide Angle Degree
Wide Angle Degree100 Wide Degree

Additional information

Weight1 kg
