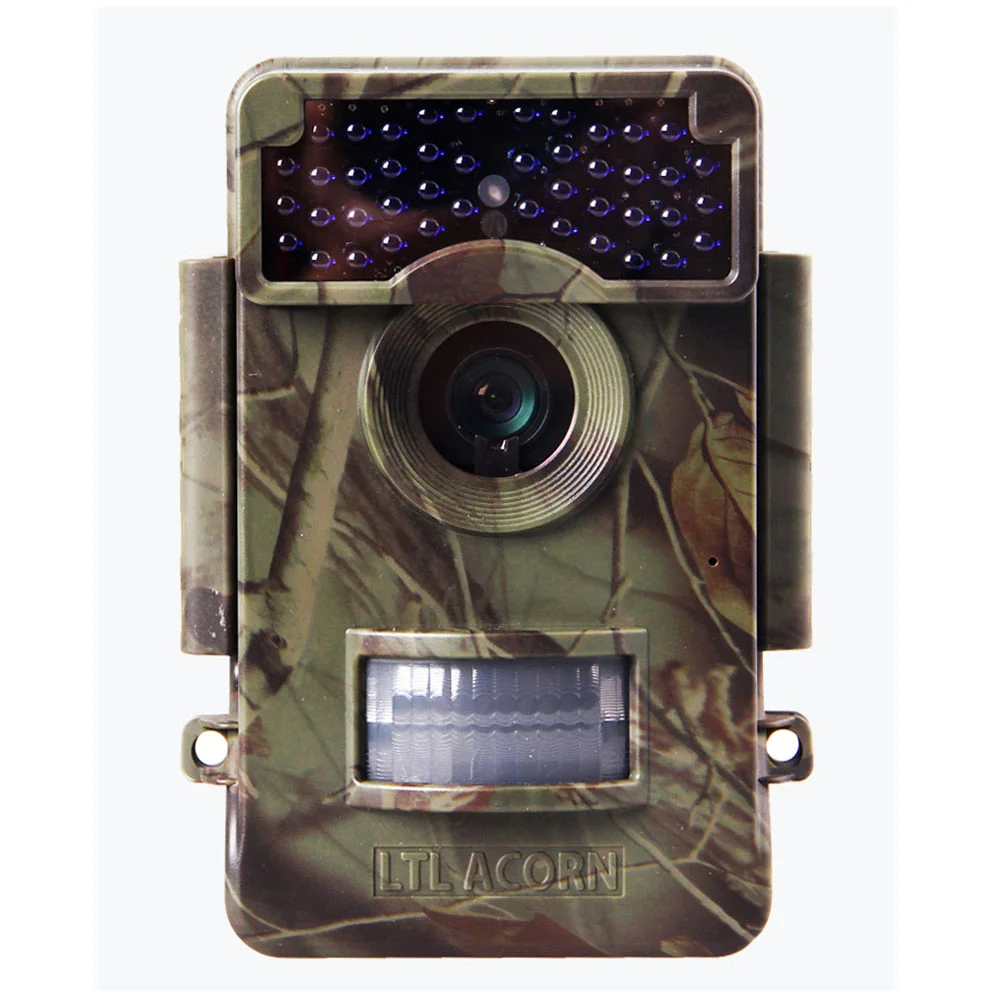

Acorn 12MP Mobile Scouting Camera

Description

The Ltl-6511MC@Ltl-6511WMC Advance is the third generation of 6511 series scouting camera. With its highly sensitive Pyroelectric Infrared Radial (PIR) sensor the camera detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggered to take pictures/videos.

Ltl-6511WMC & LTL-6511WMG with FOV (field of view) of 100 degrees.

Infrared night vision LEDs 850nm flash range as far as 25m, low-glow 940nm 20m.

In “Cam + Video” mode, camera takes both pictures and video at every trigger event.

LTL ACORN unique two horizontal PIR sensing angle comes up with a 100° angle , makes our camera activated in advance and gets ready to shoot, this split-second process could be short as 0.2 seconds.

The design of two horizontal Pyroelectric Infrared Radial (PIR) Sensors improves accuracy on shooting, reduce false trigger

Specifications:

Image Sensor   5 Mega Pixels Color CMOS

Max. Pixel Size  2560×1920

Lens    FOV=100°;Auto IR-Cut

IR Flash 850NM,20M;940NM,15M

TFT Screen  48×35.69mm(2.36″);480(RGB)*234DOT;16.7M Color

Operation  Keypad 6 Keys

Picture Size  5MP/12MP/2MP =1560X1920/4000X3000/1600X1200;

Video Size  1440X1080;15fps;1280×720;640X480;30fps

PIR Sensitivity High/Normal/Low/Off

PIR Sensing Distance 13~15Metwers

PIR Sensing Angel 100°

PIR Shooting Angel 55°

Operation Mode  Day/Night

Trigger Time  0.8Seconds

Trigger Interval 0sec. – 60min;Programmable

Shooting Numbers 1~3

Video Length 1-60sec.;Programmable

Camera +Video First take Picture then Video

Playback Zoom  In 1~16 Times

Time Stamp  On /Off; Include serial no., temperature and moon phase, date and time

Timer1  On /Off; Programmable

Timer2  On /Off; Programmable

Password  4-Digit Numbers

Device Serial No. 4 digit(0~9)s and 26 alphabets(A~Z) set by yourself

Time Lapse On /Off; Programmable:0Second-23hours 59minutes and 59 seconds

Power supply 4*AA alkaline batteries in the camera; 4*AA alkaline batteries in the camera (Or 8*AA alkaline batteries, or 2 cells of 18650 size lithium battery) in the battery box (Batteries must be learned to one side without empty in the middle).

External DC Power Supply Plug Size:4.0×1.76 ~ 12V (1 ~2A)

Stand-by Current 0.4mA

Stand-byTime 3～6 Months（4xAA～ 12xAA）

Auto Power Off Auto power off in 3 minutes while no keypad controlling

Power Consumption 180mA (+570Ma with 850nm IR LED lights up;+670 with 940nm IR LED lights up)

Low Battery Alarm 4.2~4.3V

Interface  TV out(PAL,NTSC); USB; SD Card Slot; 6V DC External

Mounting  Strap; Tripod Nail

Waterproof  IP54

Operation Temperature -22~+158°F/-30 ~+70°C

Operation Humidity 5% ~ 95%

Certificate  FCC & CE & RoHS

.
