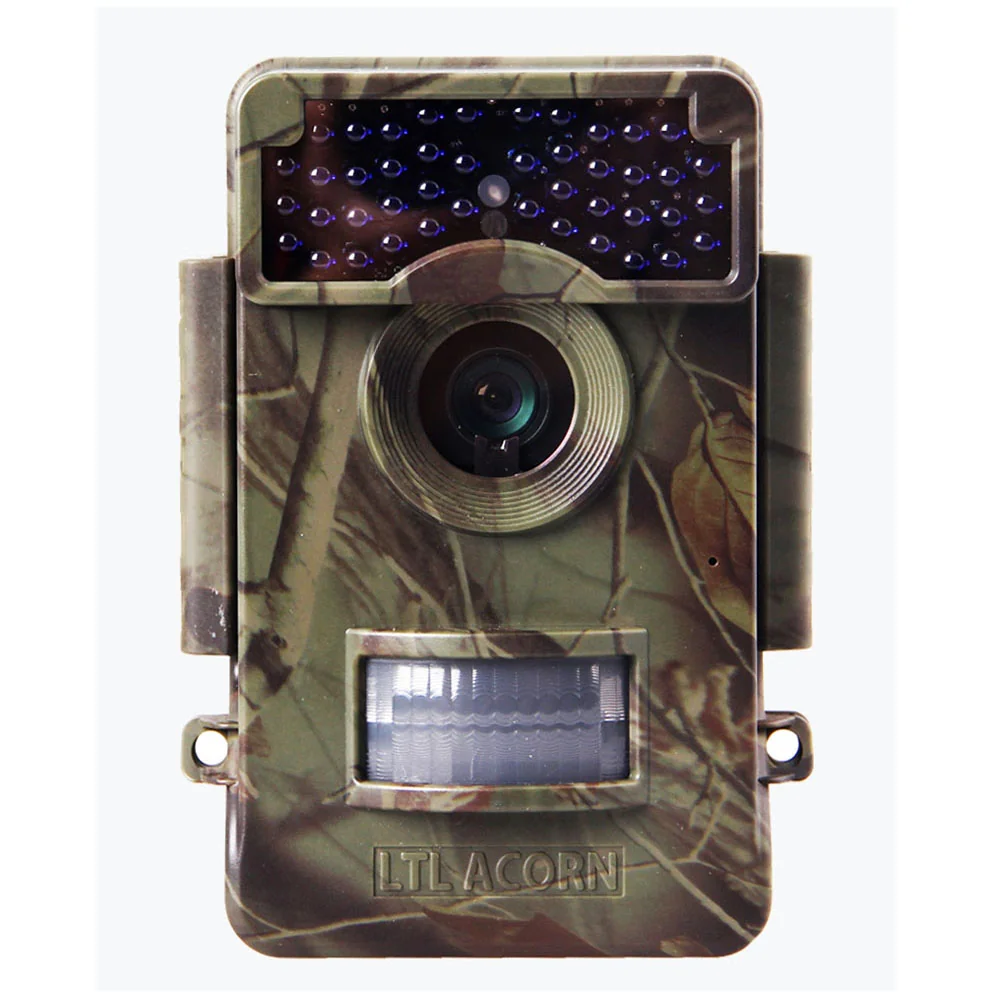

LTL-Acorn WCDMA 3G
€430.00
Ltl-6310-3G series camera optimizes the 3G communication, users can either choose to send picture immediately after shooting or send all unsent picture to email at the specified time intensively (or when checking the remote control SMS), the 3G module is working at the sending time (or when checking remote control SMS) only to reduce power consumption
greatly.
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Main Features:
WCDMA 3.5G module, upload speed is up to 5.76Mbps.
Supports to transmit full size picture and video which smaller than 10M to email by 3G network. It costs less than 1 minute from triggering to finishing sending 1.5M size picture to email, and less than 2 minutes for 9.5M size video when the 3G network is running well.
Supports to send thumbnail to mobile or email by MMS (multimedia message) to save 3G traffic.
2 ways of transmission for optional:
1. Transmit after shooting.
2. Transmit all unsent pictures at once in the specified time, the 3G module is powered off out the transmission period to reduce power consumption greatly.
Supports to send commands to 3G module by SMS to modify the camera parameters and trigger remotely.
Supports to send commands to 3G module to transmit the full size picture to email according to the thumbnail received on mobile.
SMS remote control function is realized by timing wakeup to the 3G module, SMS wakeup interval could be set as 10 minutes or 1 – 24 hours, the shorter of the interval, the faster of command responding, but more power would be consumed.
Specifications:
Image Sensor 5 Mega Pixels Color CMOS
Max. Pixel Size 2560×1920
Lens FOV=100°; Auto IR-Cut
IR Flash 940nm (100 degrees wild angle lens flashes 13meters/ 42 feet)；850nm (100 degrees wild angle lens flashes 30 meters/ 98 feet)
Auto IR Adjustment Automatically adjust brightness of IR LED in black and white video, reduce current after about 10s to lower power consumption.
TFT Display 40.8×30.6mm(2.0”);960(RGB)*240DOT;16.7M Color
Operation Keypad 6 Keys
Picture Size 5MP/12MP/2MP =2560X1920/4000X3000/1600X1200;
Video Size 1440×1080: 15 fps; 1280×720: 30fps;640×480: 30fps;
PIR Sensitivity High/Normal/Low/Off
PIR Sensing Distance 25 meters (below 25℃ at the Normal sensitivity)
Prep PIR Sensing Angle Left and right light beams form an angle of 100°; Each lens covers 10°
Main PIR Sensing Angle 35°
Operation Mode Day/Night
Trigger Time 0.8 Seconds
Trigger Interval 0sec. – 60min;Programmable
Shooting Numbers 1~3
Video Length 1-60sec.;Programmable
Camera +Video First take Picture then Video
Playback Zoom In 1~16 Times
Time Stamp On /Off; Include serial no., temperature and moon phase， date and time
Timer 1 On/ Off; Programmable
Timer 2 On/ Off; Programmable
Password 4-Digit Numbers (0~9)
Device Serial 4 digits and 26 alphabets set by yourself（0~9.A~Z）
Time Lapse On/ Off; 1 Sec~ 24 Hrs Programmable
Beep Sound On/Off;
SD cycle On/Off;
3G Send Options MMS, E-mail, Close 3G= does not send MMS/Email; Programmable
Max Sent Num/ Day 1~999/ Day
MMS Recipient Phone Number 1~2 Phone Numbers
MMS/Email Recipient E-mail Address 1~2 E-mail Addresses
SMTP E-mail 1 Sender E-mail Address
Remote Control 1 Remote Recipient Phone Number, 1 Remote Receiver E-mail
Power Supply 12xAA
External DC Power Supply Plug Size:4.0mmx1.7mm,6 ~ 12V (2 ~1A)
Stand-by Current 0.4mA
Stand-byTime 4～6 Months（4xAA～ 12xAA）
Auto Power Off Auto power off in 3 minutes while no keypad controlling
Power Consumption 180mA (+620mA when 940nm IR LED lights up)
Interface TV out; USB; SD Card Slot; SIM Card Slot; 6V DC External
Mounting Strap; Tripod
Waterproof IP66
Operation Temperature -22~+158°F/-30 ~+70°C
Operation Humidity 5% ~ 95%
Certificate FCC & CE & RoHS
