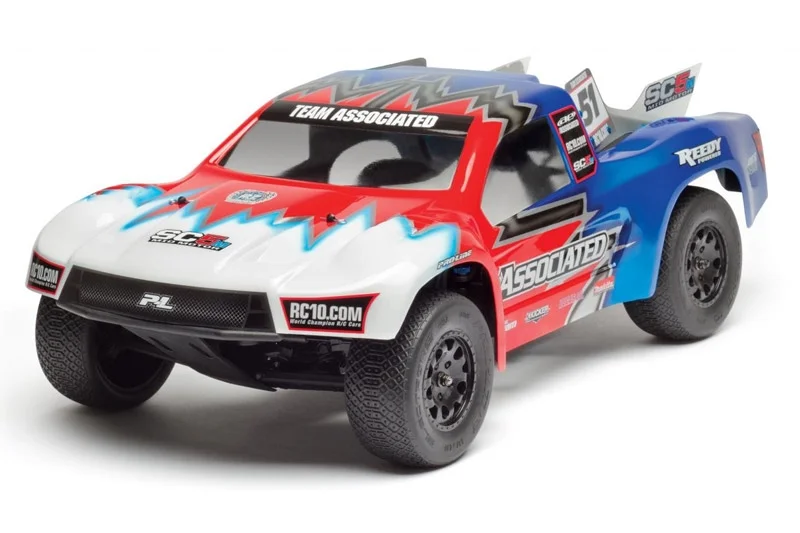

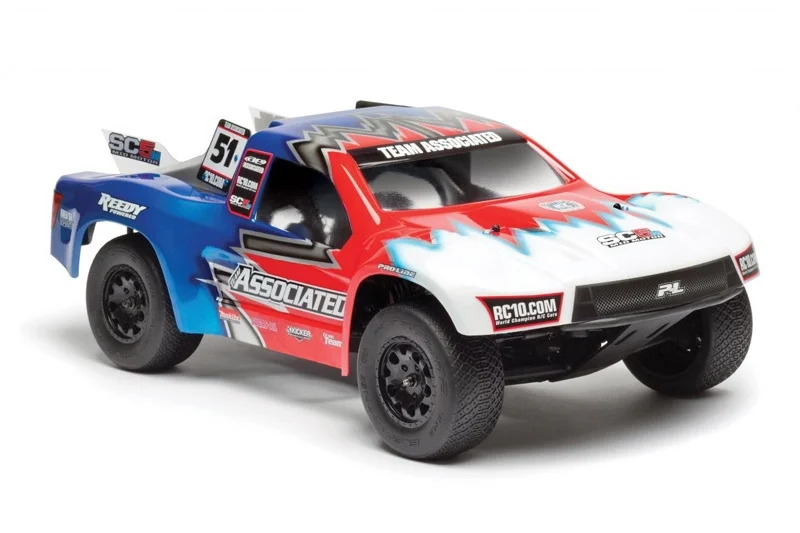

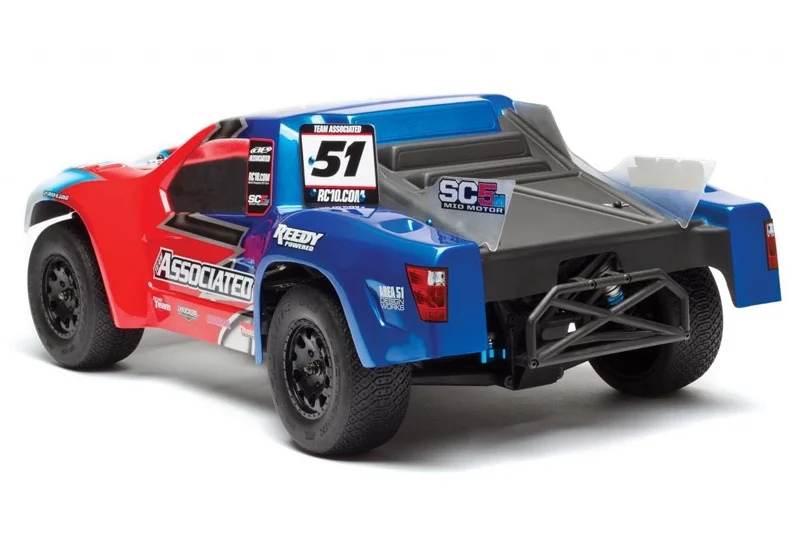

Team Associated 10Sc5M Team Kit – Team Truck
Based on Team Associated’s wildly successful, race-winning 10B5M platform, the 10SC5M Team Kit represents the next step in the evolution of competitive short-course racing.
Starting with the data acquired through the development of the B5M and T5M, the engineers behind the doors of Team Associated’s AREA 51 set out to design the ultimate short-course truck chassis that utilizes all the advantages that come with a mid-motor configuration.
The RC10SC5M Team Kit features a high-performance, no-compromise dedicated mid-motor designed chassis, configured specifically for short course. The RC10SC5M Team Kit shares nearly 90% of the parts as the B5M and T5M Team Kits, making it easier than ever to run multiple classes at the same time.
From the aluminum hard anodized chassis, to the Factory Team V2 threaded shocks, to the Factory Team VTS slipper clutch, the RC10SC5M Team Kit comes with all of these features and many more. Through testing and racing, these specific parts have been hand selected to deliver the ultimate short-course truck performance.
This vehicle needs extra parts to make it operational. Click on the SPECS tab above to see what extra equipment you’ll need to make the vehicle operational, such as motor and battery pack.
RC10SC5M Team Kit Features:
Advanced B5M mid-motor design developed and applied to a short-course truck platform

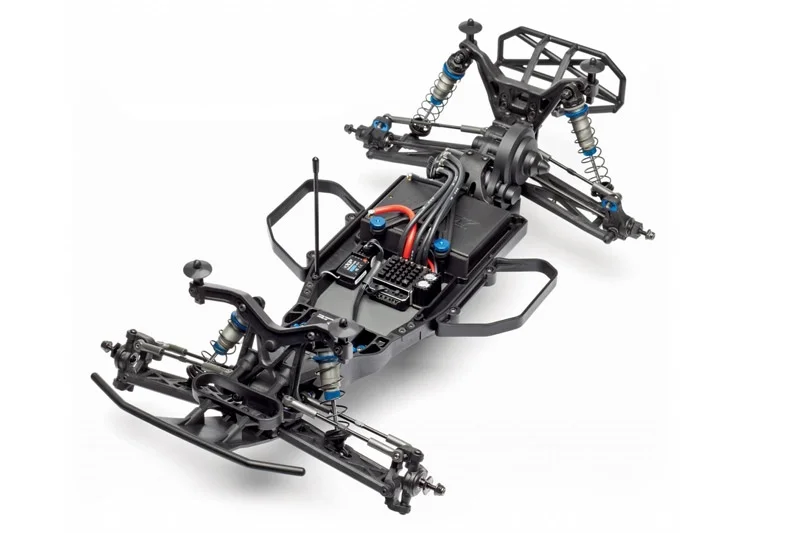

Narrow, hard-anodized aluminum chassis with centralized mass and mid-motor position for improved handling on high-grip offroad tracks
Chassis fits R.O.A.R.-approved 2S saddle packs and 2S short packs using optional foam insert
V2 12mm Big Bore threaded aluminum shocks with 3mm shafts and low-friction O-rings
Updated four-gear transmission with lighter aluminum top shaft, stronger gears, precision ball bearings, and a 14-carbide-ball differential
Pro-Line SC5M clear body included
Factory Team aluminum rear ball stud mount included

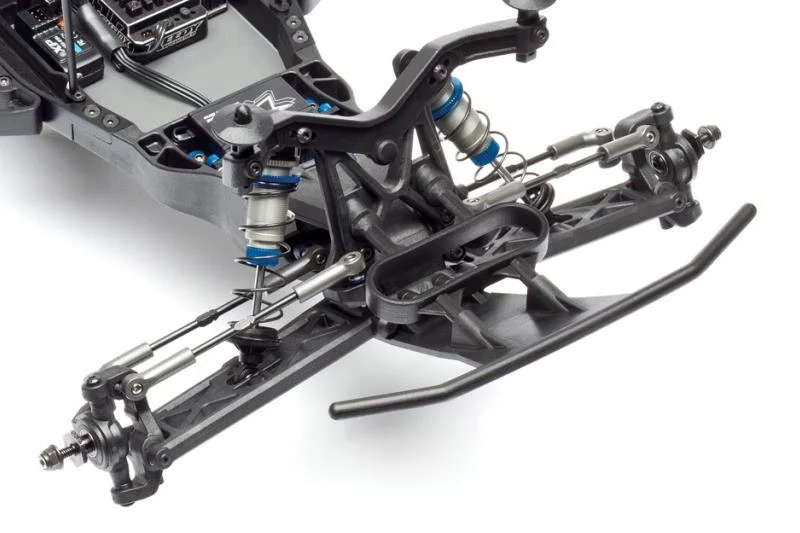

New inline front suspension features heavy duty steering and caster blocks, while the insert system allows for easy caster and trailing axle adjustments
Adjustable front suspension mount angle (kick-up) options of 25 and 30 degrees
One-piece front axle/hex adapter and large front wheel bearing for added durability
Full bearing steering system with horizontal ball studs for finer Ackermann adjustments
Heavy-duty ball cups and ball studs allow for maximum suspension travel while reducing binding and friction
Rear hubs feature large rear wheel bearings, as well as the quick and easy insert system to adjust camber link position and rear toe-in
Power Source: Electric
Body Style: Truck
Scale Size: 1:10 Scale
Length: 540mm (21.26in)
Wheelbase: 320-324mm (12.6in)
RC10SC5M Team Kit shown on these pages equipped with items.
NOT included in kit: Reedy motor, battery, ESC, servo, XP receiver, wheels, tires, and pinion gear.
Body comes clear. Assembly and painting required.
