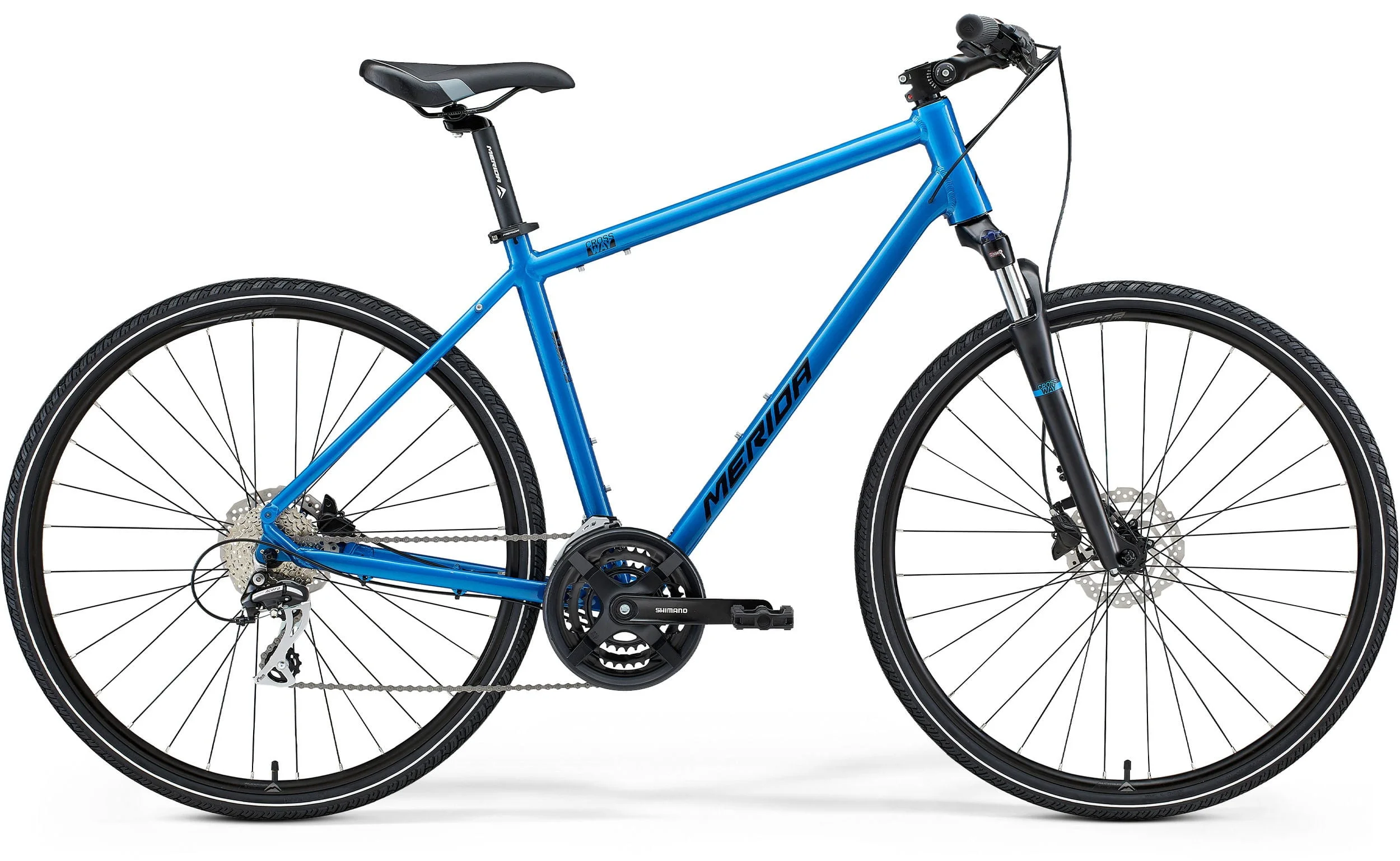

Merida Crossway 20D

To go fast, you need to be able to slow down. The CROSSWAY 20D comes equipped with powerful and low maintenance disc brakes that offer reliable stopping power, whatever the conditions or weather. This bike feels at home on the daily commute in the urban jungle as much on the weekend jaunt around the lanes and offers reliable performance at an attractive price. In combination with the powerful disc brakes, the suspension fork offers additional riding comfort and control.

Frame: TFS – 6061 series double butted and techno formed aluminium tubing with new ‘urban’ look and internal cable routing. Tapered head tube for confidence-inspiring handling. Equipped with mounts for rack, mudguards and kickstand.

Fork: Suntour NEX HLO; Coil; 63mm travel; Lockout

Rims: Merida CC; 17mm inner rim width; Material: aluminium

Spokes: Black steel

Front Hub: Shimano TX505; 100x9mm; 32 spokes; Centerlock

Rear Hub: Shimano TX505; 135x9mm; 32 spokes; Centerlock

Front Tyres: Merida K1171; 700 x 40C; wire bead

Rear Tyres: Merida K1171; 700 x 40C; wire bead

Speed: 24

Shifters: Shimano ST-EF505

Front Derailleur: Shimano FD-TY710

Rear Derailleur: Shimano RD-M360

Crankset: Shimano TY301; 48-38-28 teeth chainwheel with 170mm – XXS/SM, 175mm – ML/XXL

Cassette: Sunrace CSM668; 11-32 teeth; 8 speed

Bottom Bracket: FSA TH-7420ST-W, Cartridge Bearing

Chain: Sunrace M84

Pedals: VP Components, VPE-891

Brakes Levers: Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)

Front Brakes: Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake calliper with Shimano RT10; 160mm rotor

Rear Brakes: Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake calliper with Shimano RT10; 160mm rotor

Grip: Merida EC

Handlebar: Merida CC; aluminium; 660mm wide; 25mm rise

Stem: Merida TK; aluminium; 25.4mm diameter; adjustable – Length : 100 mm all sizes

Headset: Merida M2345

Saddle: Merida Cross Sport

Seat Post: Merida CC; aluminium; 30.9mm diameter; 15mm lay back

Note: Manufacturer may change the specification of that listed without prior notice. This could include but not limited to specification or colour
